Church Audio, Lighting, Video & Broadcast Integration Project
I was responsible for the full technical integration of audio, lighting, LED video wall, live broadcast, and acoustic treatment systems for a modern church facility. The project was executed from initial system design through installation, configuration, and final commissioning.
A key requirement was to design and program the entire system so that it could be reliably operated by non-technical volunteers, while still maintaining professional production standards.
Scope of Responsibility
System design and equipment selection
Installation and mechanical integration
AV rack build and cable management
Network configuration (audio & video systems)
DSP tuning and system optimization
Lighting programming
LED wall configuration
Broadcast workflow design
Simplified user interface design for volunteers
Operator training and commissioning
Audio System

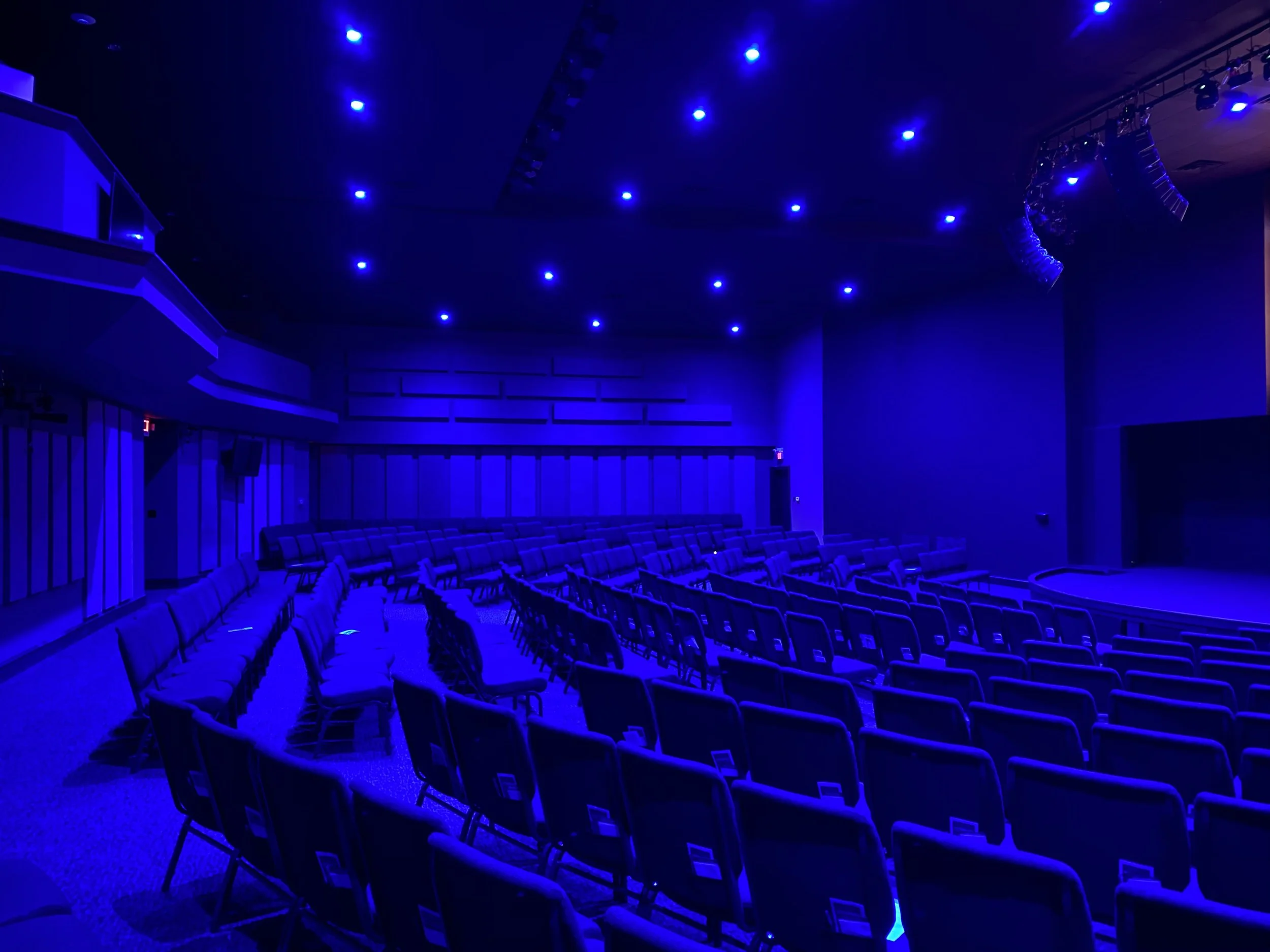

The main PA system was built around RCF HDL 6-A line array modules, providing controlled coverage and consistent speech intelligibility throughout the sanctuary.
A Midas X32 Rack digital mixing console served as the system core. Configuration included:
FOH mix for in-room audience
Dedicated broadcast mix
Stage monitoring (In-ears)
Structured gain staging
EQ and dynamics processing
Scene-based workflow optimized for volunteers
Safe operating ranges and clearly structured presets were implemented to prevent accidental system misconfiguration.
LED Video Wall
A 2.9mm pixel pitch LED video wall was installed as the primary visual display.
Key aspects of the installation:
Precise mechanical alignment and panel calibration
Integration with live video switching system via SDI network
Signal routing and scaling configuration
Color and brightness calibration between main screen and stage monitor for camera compatibility
The LED wall was mounted on a horizontal rail system, allowing it to slide laterally into the wall structure. This design enables the entire display to retract, revealing additional usable space behind it when required. The solution combined structural precision, cable management planning, and service accessibility while maintaining a clean architectural appearance when closed. The wall was designed to be recessed into the architectural structure (“flush into the wall”) to create a clean, integrated appearance while maintaining service access.
Acoustic Treatment
Custom acoustic panels were designed and installed to improve room performance. This reduced reverberation time, minimized reflections, and improved clarity for both speech and music.
Lighting System
Stage and architectural lighting were implemented using fixtures from Elation Lighting, Blizzard Lighting and DasLight Control.
Responsibilities included:
Fixture installation and DMX addressing
Scene programming
Creation of simplified service presets
Front lighting optimization for live video
Lighting was programmed to allow volunteers to transition between service modes without requiring technical expertise.
Video & Live Broadcast System
The live production workflow was built around equipment from Blackmagic Design.
Configuration included:
Multi-camera live switching
Video routing and signal management
Integration with LED wall
Streaming pipeline configuration

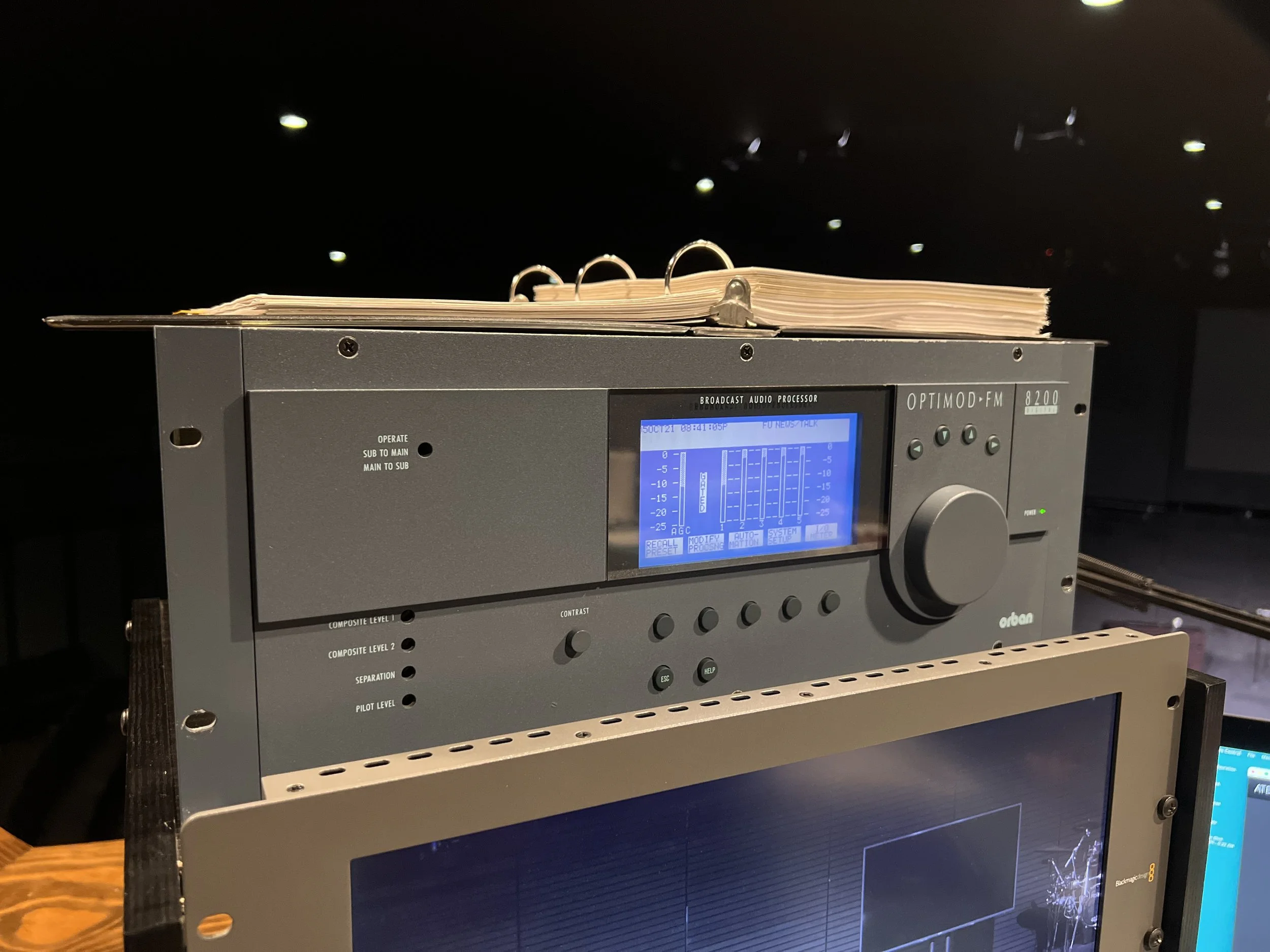

An Orban Optimod FM 8200 was integrated for broadcast audio processing and signal optimization.
Fail-safe routing and predefined configurations ensured stable operation during live services.
Technical Competencies Demonstrated
Full-scale AV system integration
Line array deployment and tuning
Digital console configuration and scene management
LED video wall installation and calibration
Live production and streaming workflow design
AV networking
DMX lighting programming
Acoustic optimization
User-centered system design for non-technical operators
Commissioning and training
